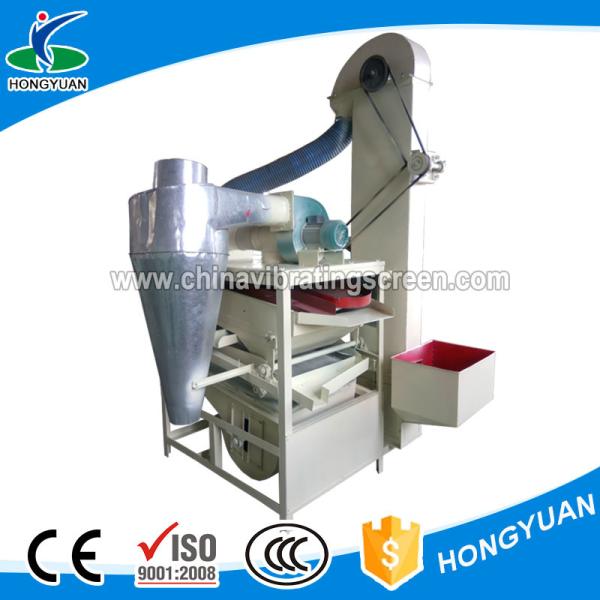

Family farm kernel Cleaning and Sieving Machine

Product Description

Family farm kernel Cleaning and Sieving Machine is the new model cereals and beans cleaning sorting machine which combine bucket elevator for auto feeding and the gravity platform, sieving screen, cyclone dust collector for sieving/ cleaning/ sorting/ to remove the impurities and coarse from the grain cereals so that make it clean. It is the blowing type gravity separator, used for separating grain and seed which have same shape but different in gravity, finally obtain the best seed which will be used for sowing,selling or milling.

The gravity separator can efficiently remove moldy kernel, immature shriveled, insect damaged seed or broken seed to ensure maximum quality of the final product.

It has a wide application for coffee bean, cocoa bean, pistachio nuts, peanuts, corn, peas, beans ,rice, wheat, sesame oats, buckwheat,millet, sesame, sunflower seed, sorghum, lentils, cumin and paddy. The grain seed cleaning rate could be at 99%, it is beneficial and helpful for both selling at market or milling procedure.

Click the image to view this video

Main Features

1)Easy Feeding Way: It can save the manpower by the extra vertical bucket elevator for feeding device

2)Gravity Separator: Separate the grain seed by different weight
3)Double Sieving Screen layers: Sorting the grain seed by different size
4) Air blower: Blowing the impurities out
5) Cyclone Dust Collector: Collecting the dust so that improve the cleaning rate

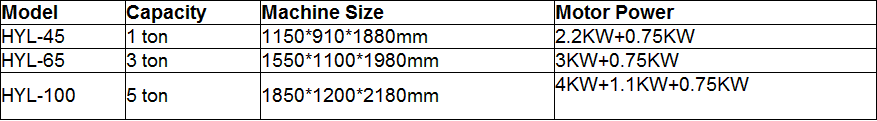

Working Performance

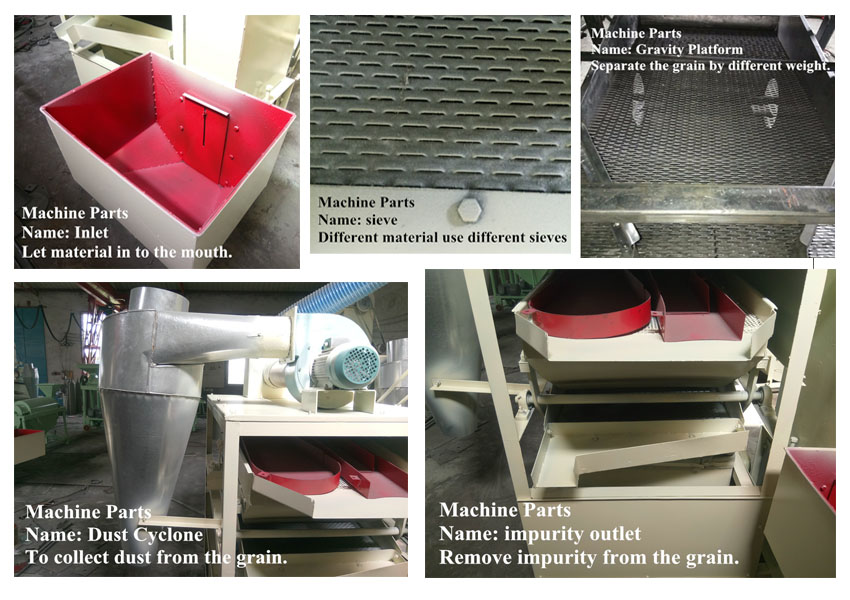

Detailed Images

Packing & Delivery

Clients Visiting

Xinxiang Hongyuan Vibration Equipment Co., Ltd. is one of the famous enterprises that manufacture and sell equipments for screening, conveying and elevating. The company is located in the Hi-tech Development Zone of Henan Xinxiang, which is the largest manufacturing base of vibrating screen in China. The city of Xinxiang also has the advantage of convenient transportation, as the Yellow River is in the north of it, the Beijing-Hong Kong-Macau Expressway is in the east of it, and the Beijing-Guangdong Railway is in the west of it.

The company is specialized in the manufacturer, sales and research of vibrating screen and non-vibrating screen equipment, conveying equipment (screw conveyer, belt conveyer, drag conveyor, vibrating conveyor, magnetic conveyor, high-pressure conveyor and so on), as well as elevating equipment (TD series elevator, NE series elevator, vertical elevator and high-pressure elevator). Presently there are over 200 employees, among them, 65 have professional titles of middle and senior. In the year of 2000, the CAD work station was established by the company, which is an earlier one in the same field. Moreover, our products have scientific design, high performance and reasonable price. Depending on the first-rate products, as well as the advanced technology and equipment, highly competent personnel, strict management, and complete inspecting measures, the company has fostered a good image.

Aiming at high quality and satisfying service, and based on the principles of honesty, pragmatism, innovation and diligent, the company does welcome the old and new customers to communicate and corporate with us.

For over ten years, the company has devoted itself into the manufacture and development of vibratory equipment, which includes vibrating screen and non-vibrating screen, conveyor, feeder, vibrating motor, elevator, etc. In addition, the company not only has the excellent equipment, but also has a comprehensive marketing and after-sale service network all over Asia. Before sales, this network can provide technology support; for sales, it can provide help for business negotiation; and after sales, it can provide guide for installation and application. All in all, this network can assure you satisfying service in the whole process.

At last, the company does want to express the heartfelt thanks to the trust and support of the old and new customers. It is hoped that we can make progress and create a bright future together! Hongyuan does welcome you!
