Standard specifications sweet rapeseed wheat seed cleaning machine for sell

The grain granule can be thrown straight line shape, throwing distance can reach 6-8 meters, the machine without food conveyor belt can be directly run into the house of the rolls, it is also called "grain thrower without wind".

Model No	Capacity(T/H)	Dimensions(mm)	Motyor power(kw)
HYL-25-Ⅲ	≤20	5010*2100*1950	7.5 +1.5
HYL-8	5-8	2800*1350*1500	4 +3

Functions

This new type grain winnowing machine is suitable for grains,corns,wheat,sorghums,millets,rapeseeds,sunflower seeds,beans and so on .It is widely applied in the livestock breeding, small farm, small feed producing company,grain and cooking oil processing factory,wind plant,chemical plant and pharmaceutical factory etc.

Main Features

• With wheels , it is very easy to move .
• With hand crank , you can use it for manual or electrie
• The machine can be changed the punching mesh or the stainless steel mesh according to the grain granule size.
• Multi-purpose by change the mesh or adjust the blowers so as to meet the different sieving or throwing demand.

Model No	Dimensions(mm)	Weight(T)	Power(kw)	Revolving speed(R/min)	Rotating speed(r/min)	suction ventilator(r/min)	Angle Gravity platform	Angle of Screening	Amplitude(mm)	Capacity(T/H)
HYL-25-Ⅲ	5010X2100X1950	1.98	7.5 +1.5 +1.1	1440	800	1450	63℃	33℃	24	≤20

Working Principle

Grain cleaning machine can feed materials automatically by bucket conveyor or belt conveyor . It can be better used to clean light agricultural products such as sunflower seeds, sesame, beet seed,castor bean, millet and so on. The machine also can be equipped with throwing-food machine. The machine can be used to clean and sieve grain by a blower and the wind can be adjusted. The working principle is similar to that of the original windmill moved by hand. It is easy to be moved and convenient to be maintained. The machine is really a machine serving several purposes. The neatness can reach 95%. If not equipped with throwing-food machine, the machine can clean and sieve 15 tons corn or soybean per hour.

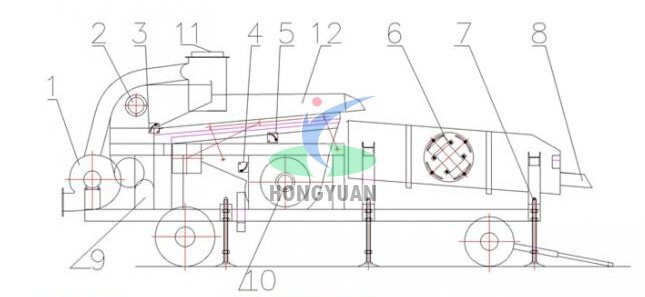

1. Dust removing blower 2.Observation hole

3.Plate 4. Adjust the air pressure

5. Adjust the propotion of screen volume 6.Vibrating Motor

7. Adjust the height 8. Finished grain outlet

9. Coarse cereals outlet 10. Main air blower

11.Feed inlet 12. Separation platform

Detailed Images

Packing & Delivery

Packaging Details

Packing in standard fumigation plywooden box by LCL.

Nude packing if by FCL

Note:

The HYL-25-Ⅲ grain seed screen cleaning machine is widely used for cleaning and grading agricultural products, such as grain seed, tree seed, grass seed, oilseed, commodity grain, etc

Feeding ways: bucket elevator

Related Products

TD Series Bucket Elevator

Movable 4 meters height Vertical Feeding Bucket Elevator

Grain Polishing Machine.

Make Grain Beans Bright and Clean.

Our Services

All produts purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free.

a .Before sending the machine, we will test and adjust, so you can use directly when you get it.
b.Operation video & instruction will be sent to clients, to help them use the machines better.

Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will solve your problems in time. If you are caught in some problems when using our products, welcome to contact us at any time.

a.Any problems occur while using, professional advice will be offered.
b.All kinds of frequently used parts are supplied all the year round.
c.24 hours hot line +8615560250277.
